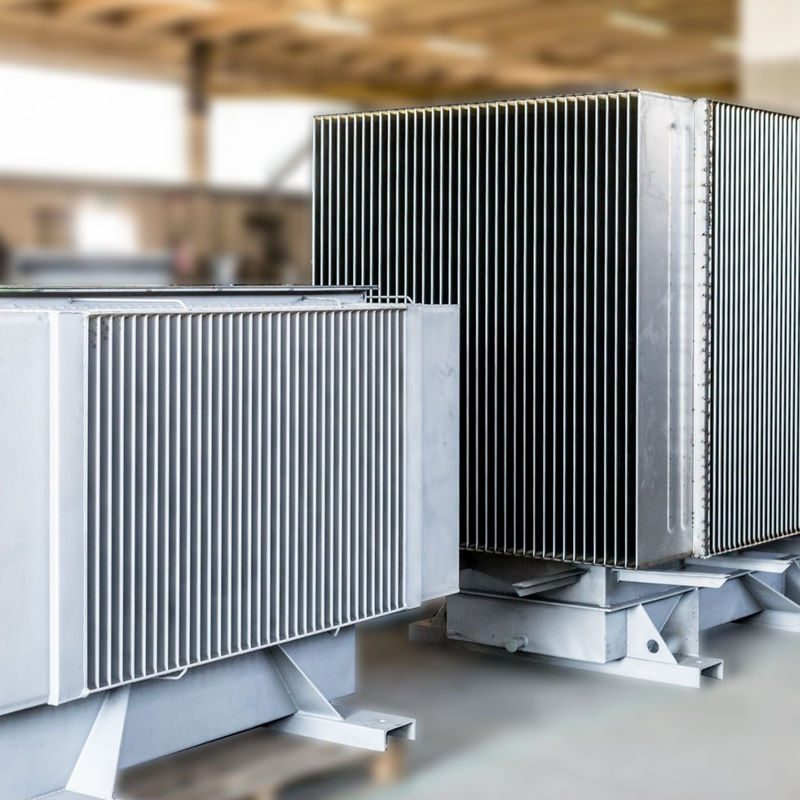

Corrugated wall tanks for distribution transformers from 50 kVA to 12 MVA. Hermetically sealed or expansion tank designs, manufactured to customer drawings.
Convett’s corrugated wall tanks are manufactured in accordance to customer drawings and are produced not only as individual tanks but also in serial production. Manufacturing capability spans from 50 kVA to 12 MVA, with either hermetically sealed or expansion tank options based on application requirements.
02Key specifications
At a glance.
Capacity range
50 kVA – 12 MVA
Tank designs
Hermetically sealed · Expansion
Surface treatment
ISO 12944:2008 (C3, C4, C5-I, C5-M)
Painting
Two-component epoxy primer, spray or flow-coating
Alternative finish
Hot dip galvanizing

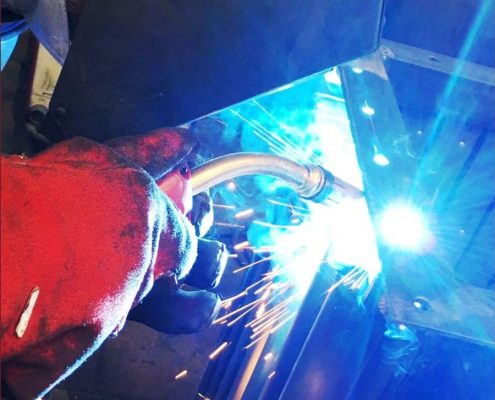

Welding
CMT Fronius · LAE automatic welding
Certification
Accredia-certified welders · WPQR records
03Features
Quality assurances
Certified high-quality raw materials for mechanical resistance
